Course Hub

Project Overview

Course Hub was built as cross-functional course management and registration system for lifelong learning programs. The platform streamlines the course administration and management, course discovery and registration process across multiple departments and professional development programs.

Design Evolution

Phase 1: Initial Branding and Tools

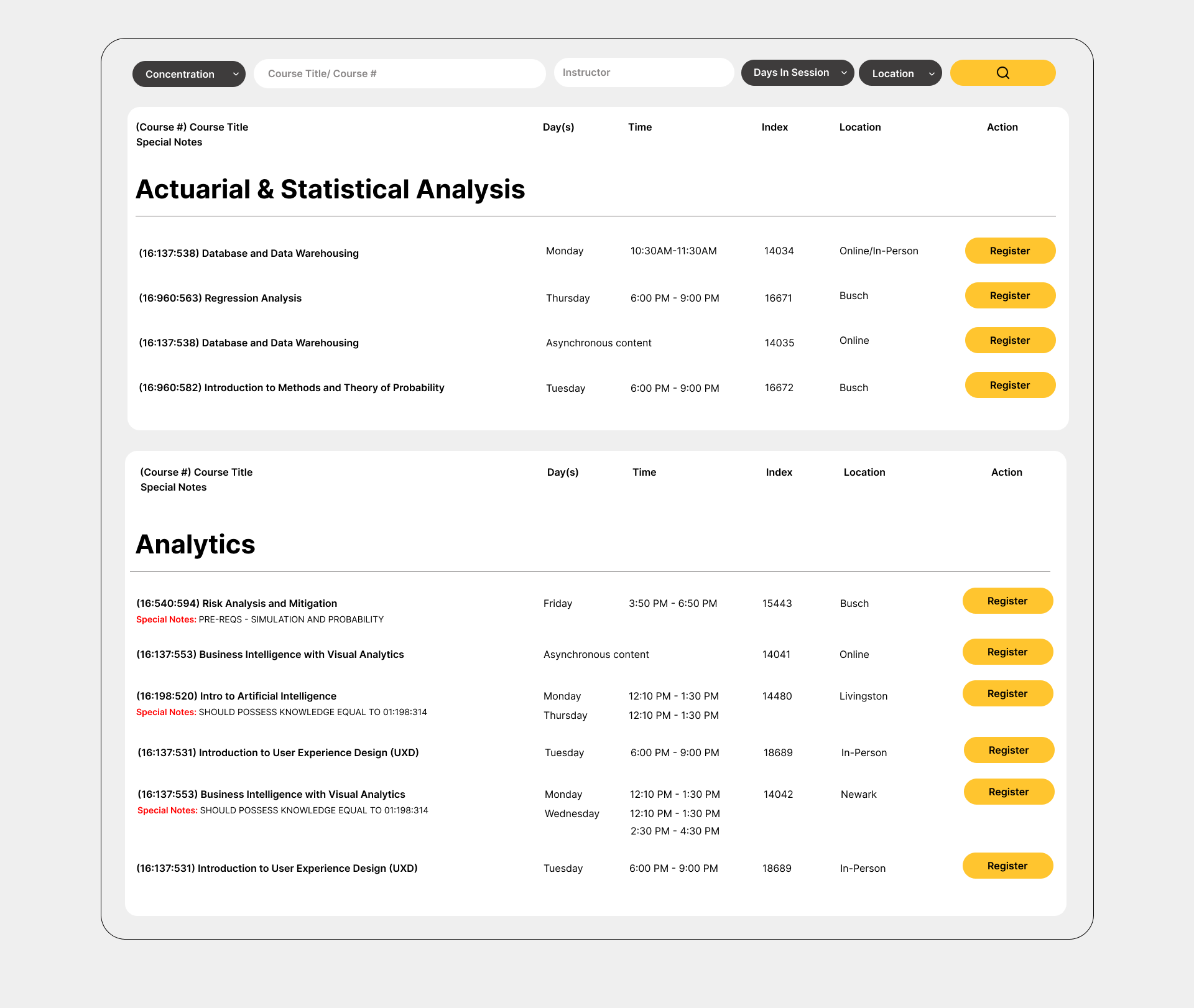

The initial design was a product of both Adobe XD and Figma. The first iterations featured a card-based layout optimized for mobile devices, making course information easily digestible on smaller screens.

The initial design phase included:

Consistent Branding through color and styling.
First card layout iteration for course details.
Expandable sections for admins to edit course details.
Sortable columns for easy course comparison
Duel Navigation Menus based on unauthenticated and Admin view.
Inline actions for quick registration or viewing details
Multi-field search with filters for program, instructor, and location

Phase 2: Prototype Evolution

The prototyping phase was created on a local host using HTML, Tailwind CSS, and Javascript. The purpose was for the development team and stakeholders to interact with each functionality of the application, and to evaluate improvements for the design during the development process.

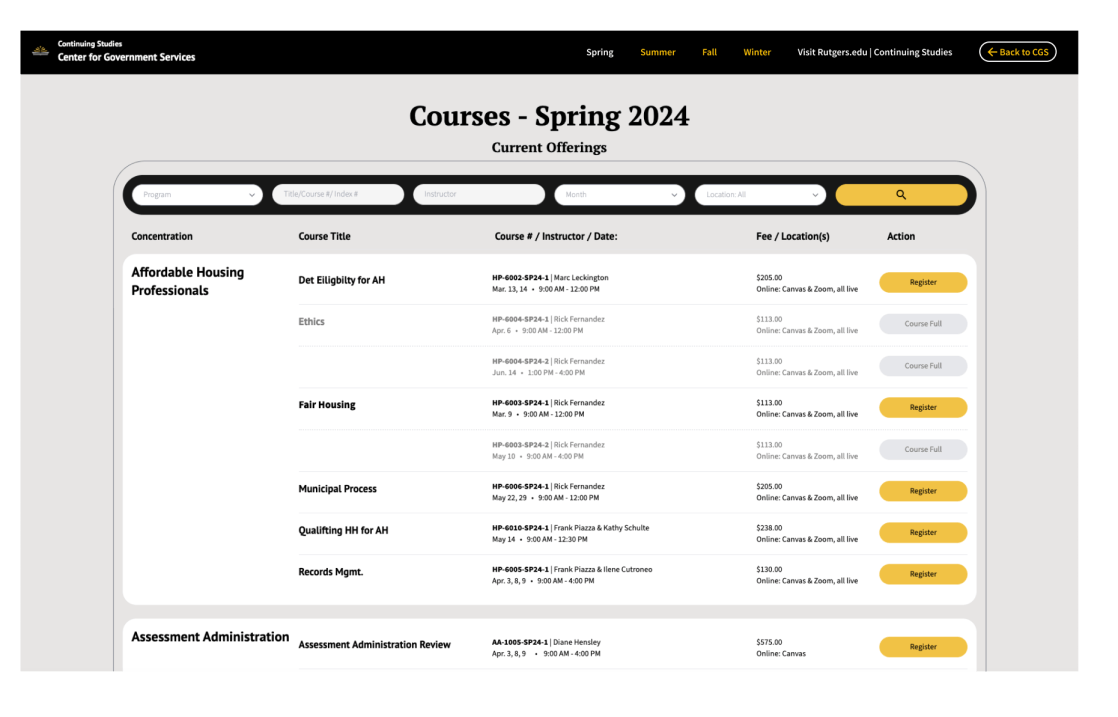

User View

During the prototyping, the course detail layout had been improved for easier to follow reading while in large scale. This was also due to new data, that provided more insight in how the layout fit in real time. Other imporovements were an updated menu and navigation, and filtering style.

Admin View

We knew the admin view needed to have a different visual appeal to seperate from user needs. The admin view has a different navigation menu for amdin controls, and has an extra column for Actions to edit or multi-select courses for editing course details. The modal appears when multiple courses are selected for editing.

Admin Navigation Menu

The Admin Navigation menu features the course listing page gto voew and edit course details, add banners, view and add admin users, manage courses by term, and logout.

Many Rounds of Polling: Admin Course Edit

We tested many componenets of the app during the prototyping phase using Figma. The Admin course editing went through multiple iterations of designs and polling.

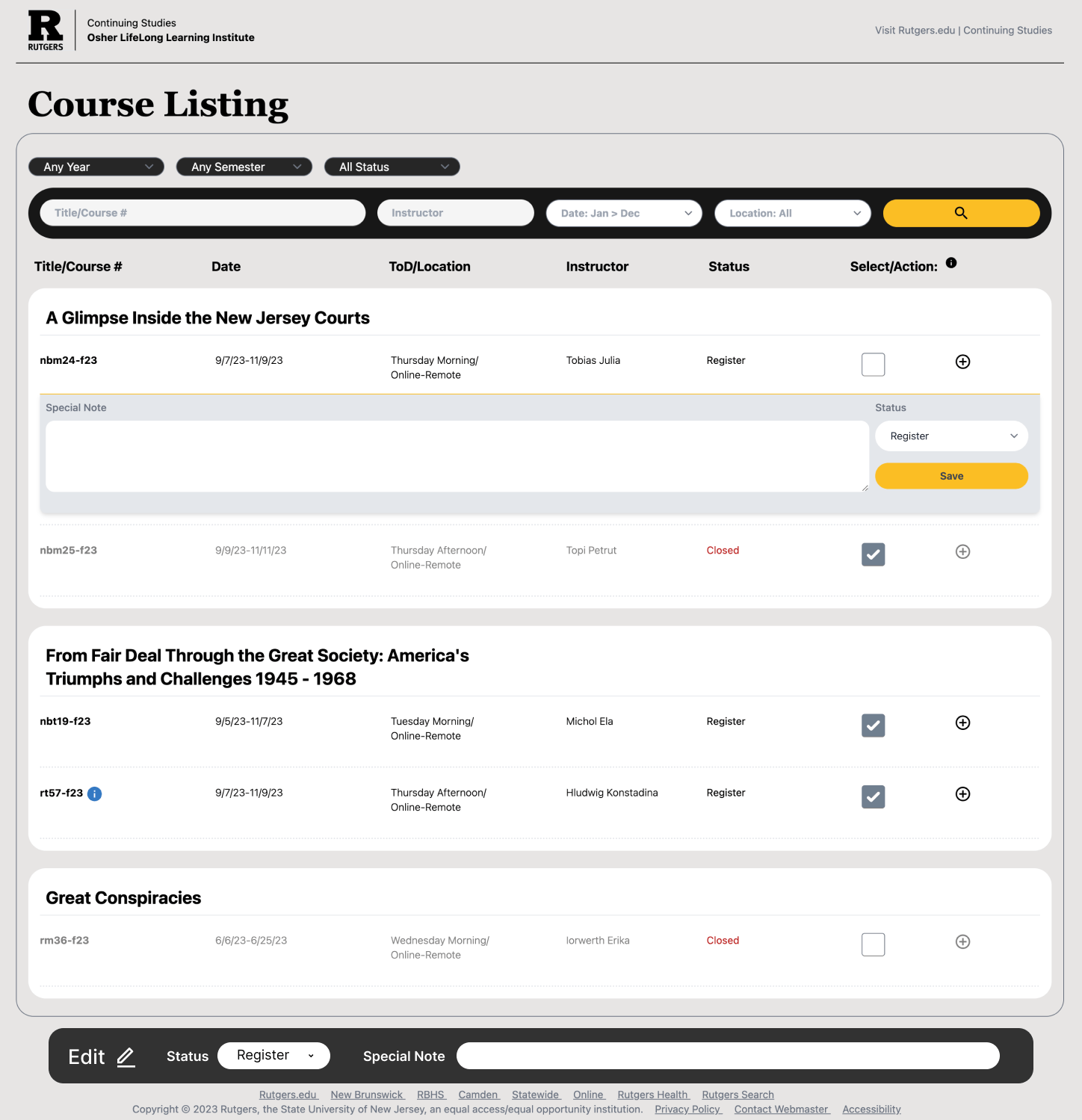

Concise Admin Edit Modal

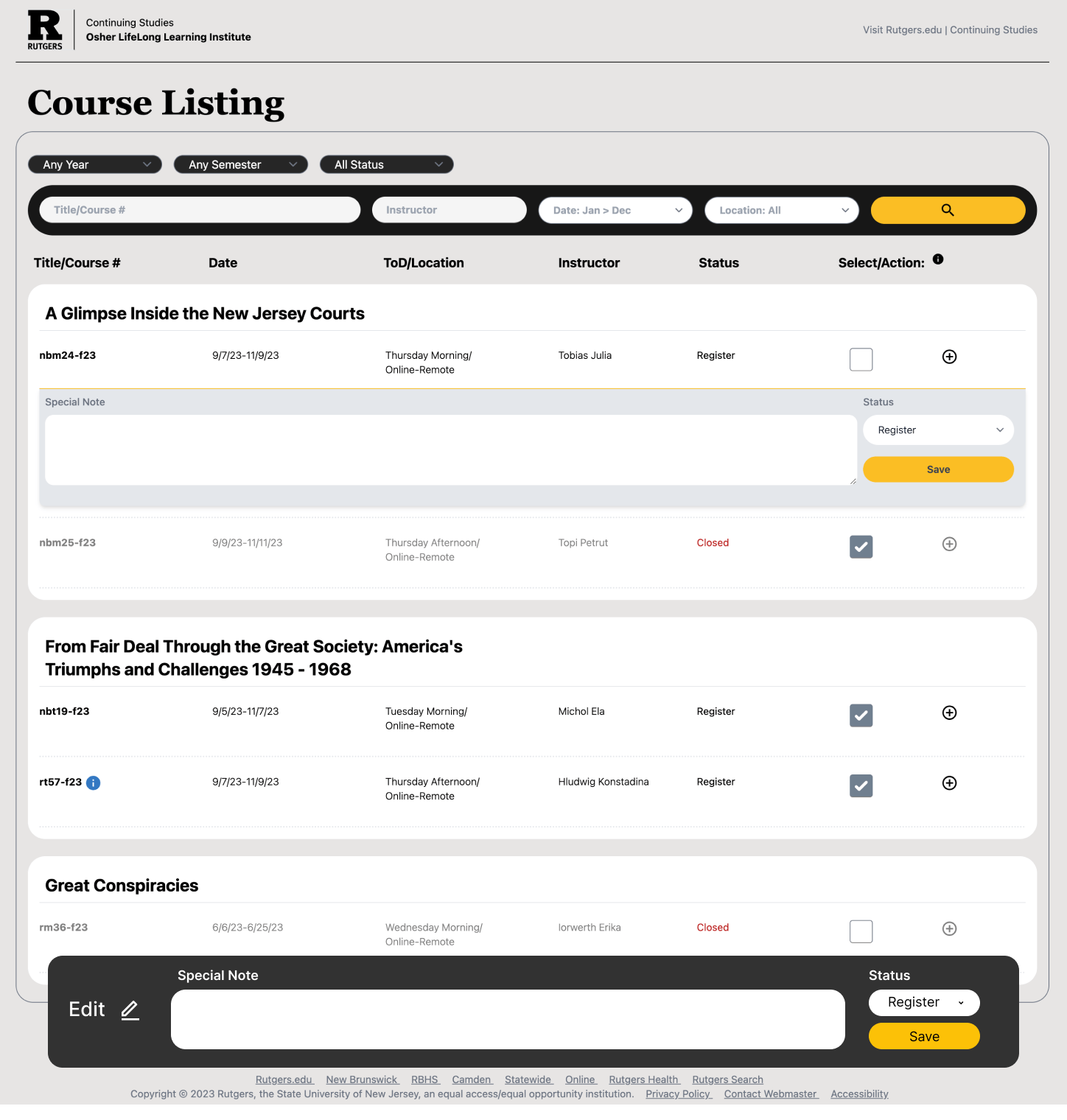

Verbose Admin Edit Modal

Inline Admin Edit Modal

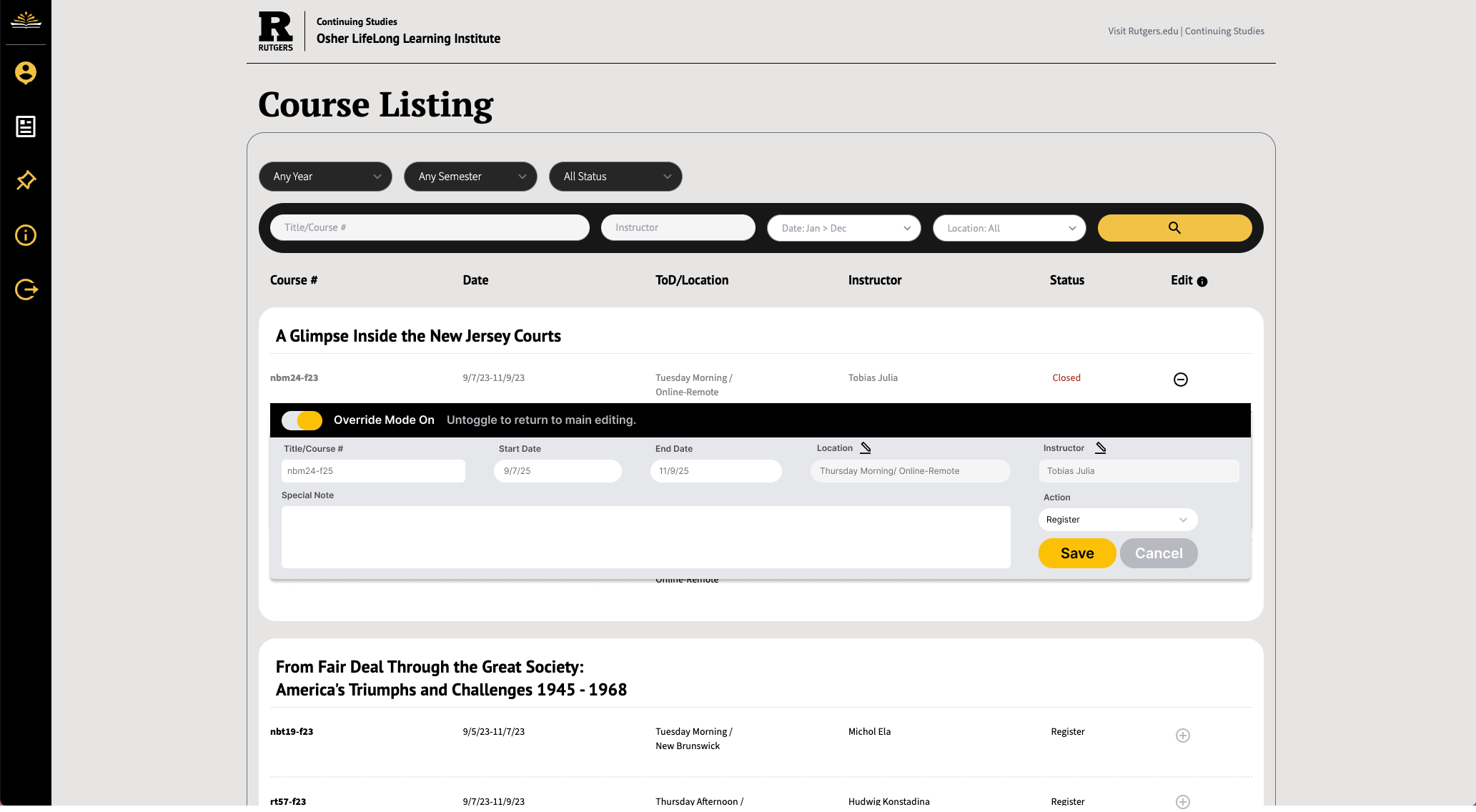

Override Mode

Phase 3: A/B Testing, Design Improvements, and User Flow Figma Protoyping

With the use of our functioning prototpe, we A/B tested our application, looked for ways to improve user flow, card layout, and overall usability. Having attended Figcon 2024, I proposed using Dev Mode version of Figma, to enhance our abilities in the software and communicate within the team.

Once Dev Mode was activated, we rebranded our checkout flows in Figma, created a poll, and found the best solution for user navigation. We applied our new designs and began developing in the Next.js framework.

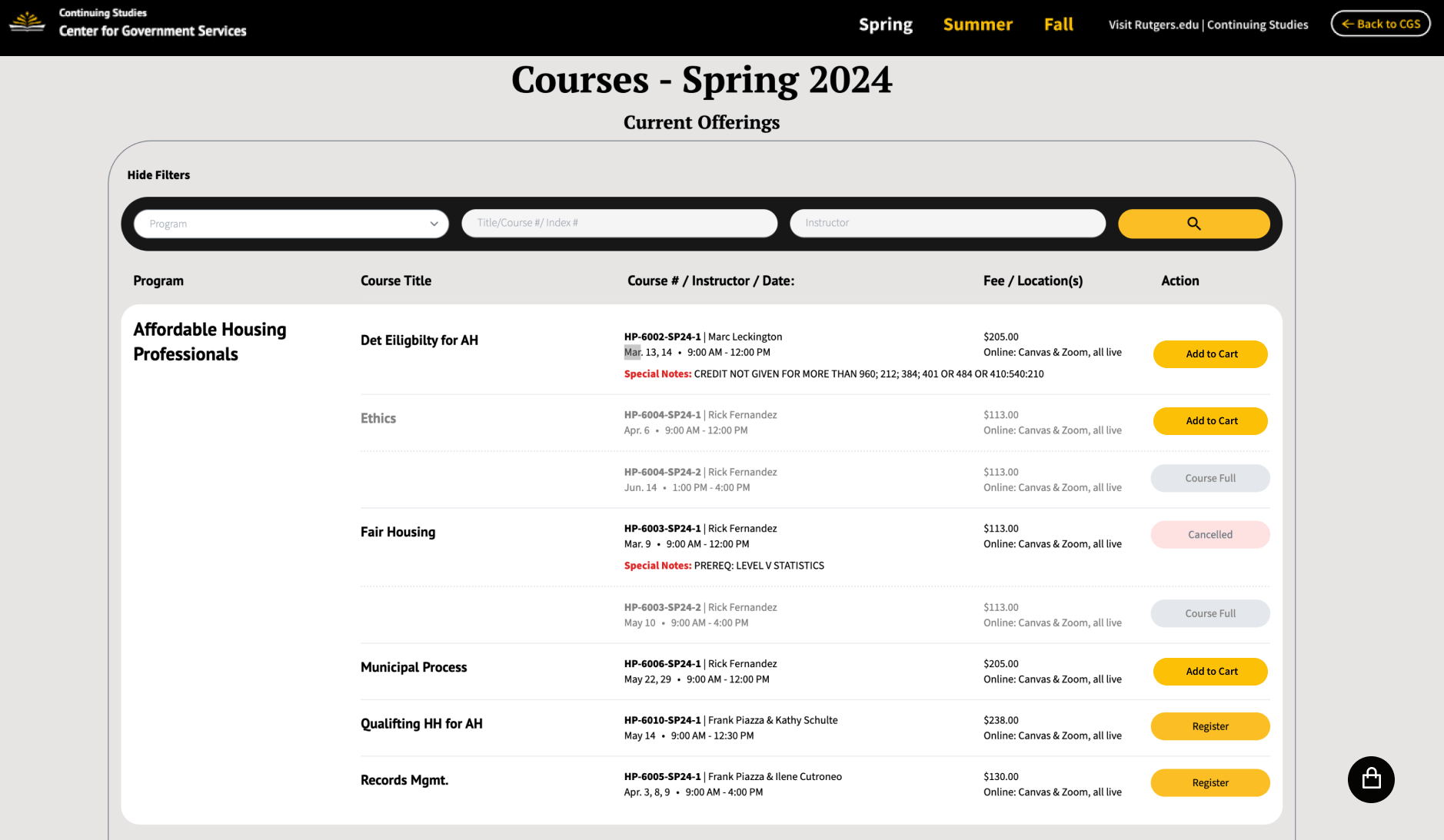

Revised Course Lisiting Page: Desktop

Finalizied course listing desktop view based on real data, polling choices, stakeholder input, and A/B testing.

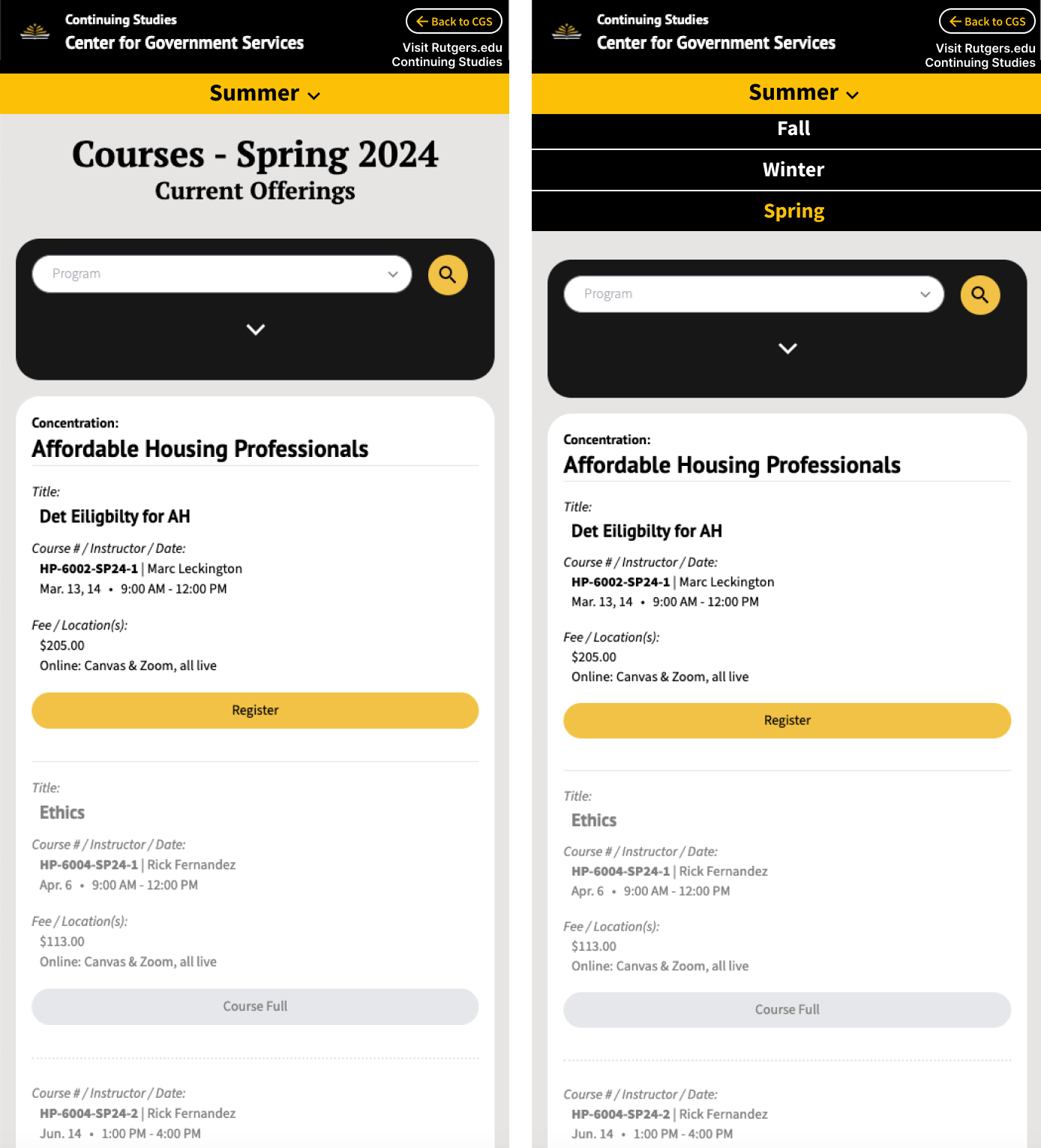

Revised Course Lisiting Page: Mobile

Finalizied course listing mobile view based on real data, polling choices, stakeholder input, and A/B testing.

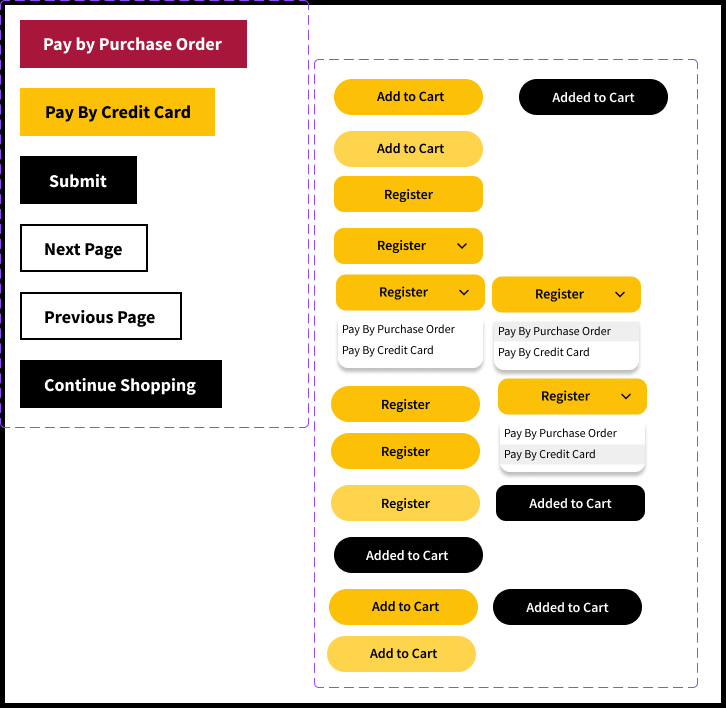

Button Variants

Interactive, versatile buttons with various styling for Figma prototype.

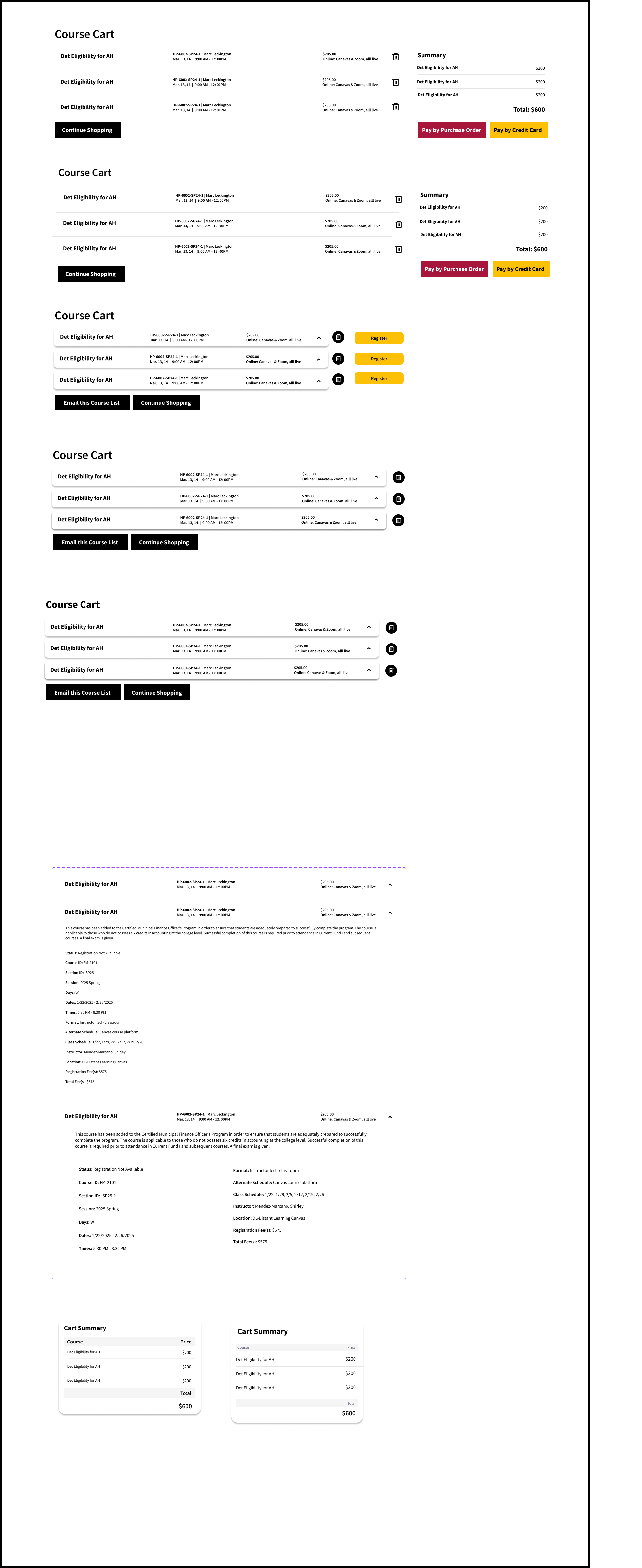

Course Carts

Multiple course cart layouts for checkout page that went through a polling process, with drop down of course details.

Payment Options

Payment method section for checkout page.

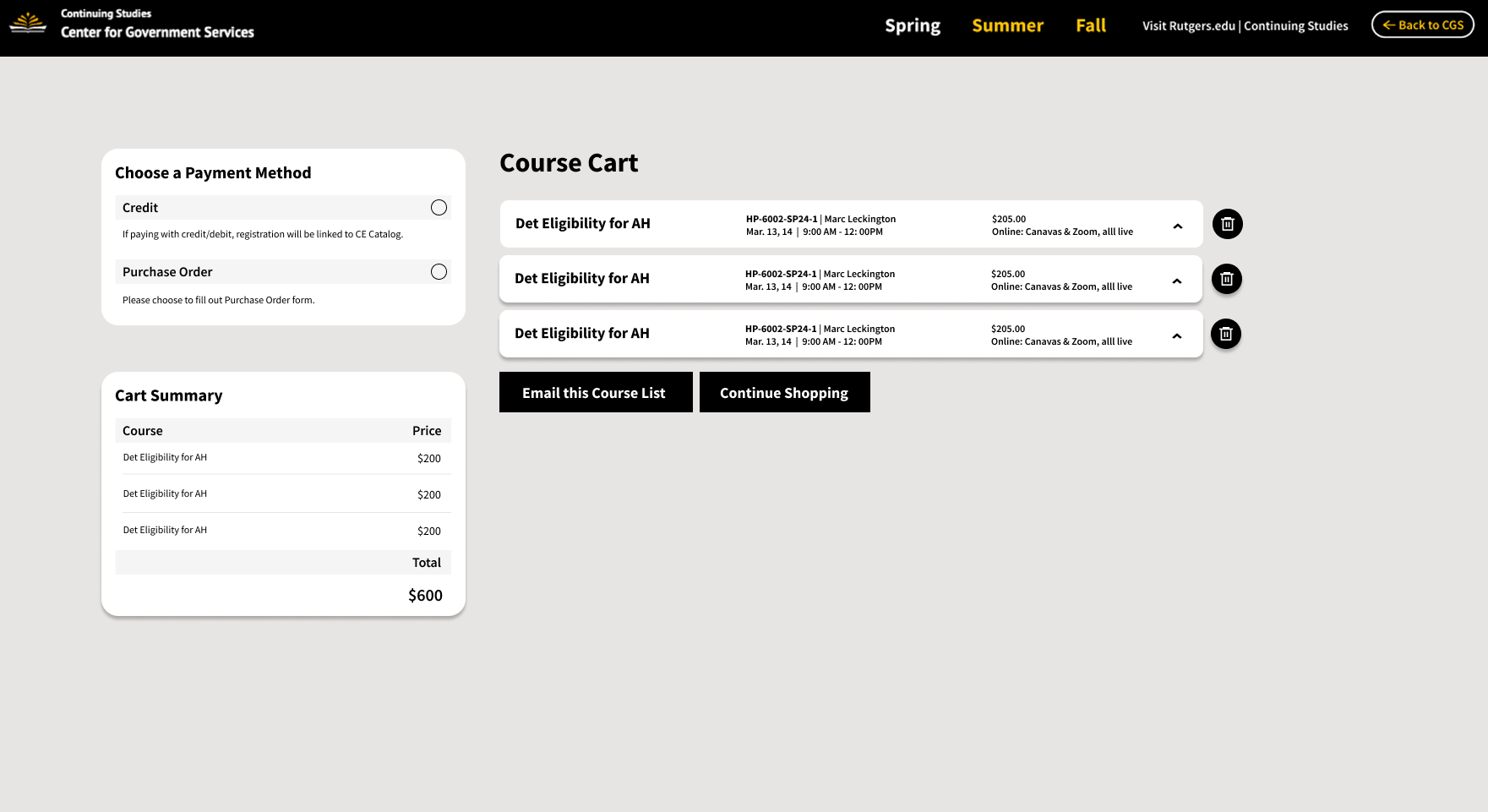

Default Checkout UI

Default checkout page with no option selected.

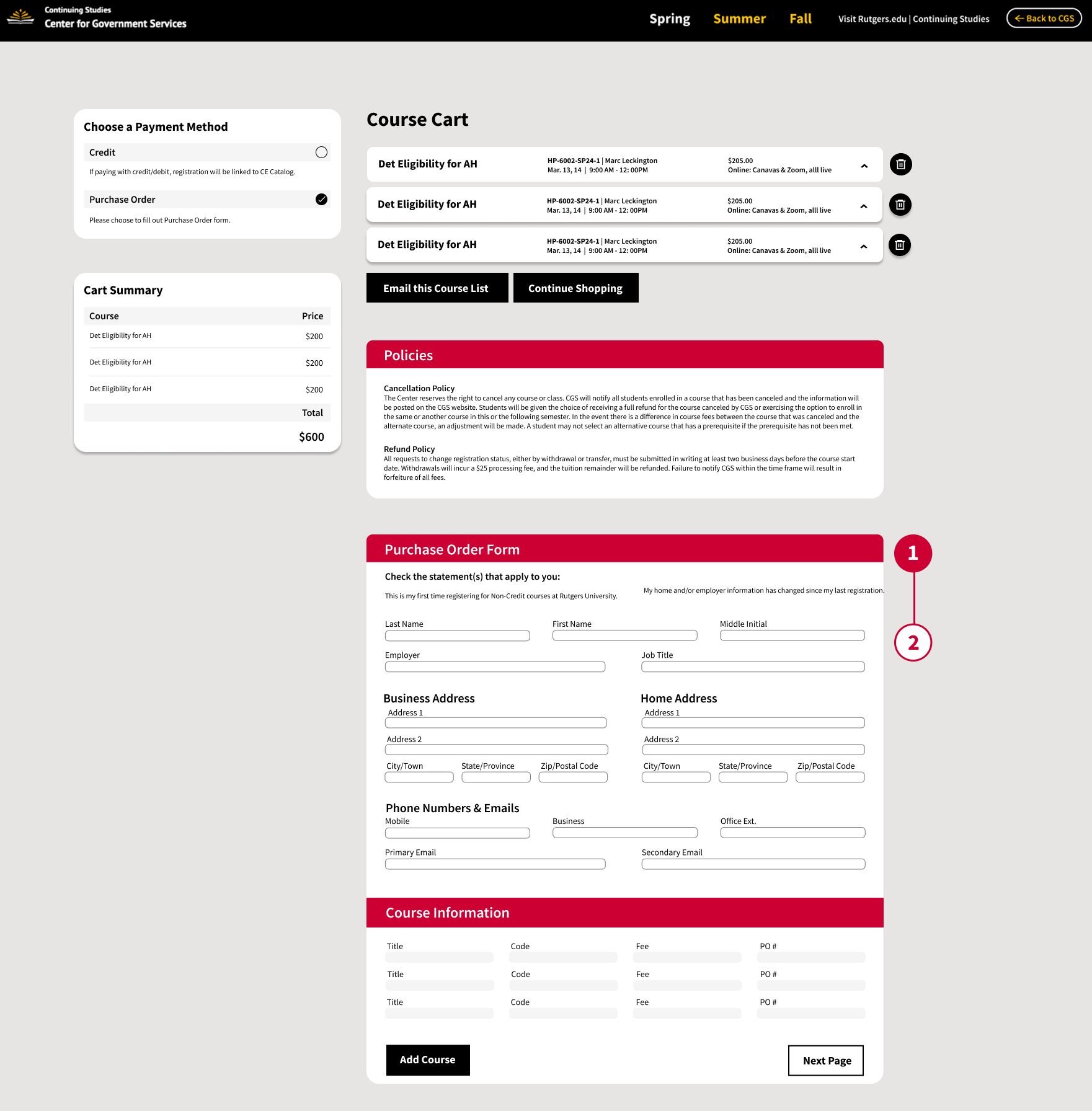

Purchase Order UI

Purchase order option reveals a form.

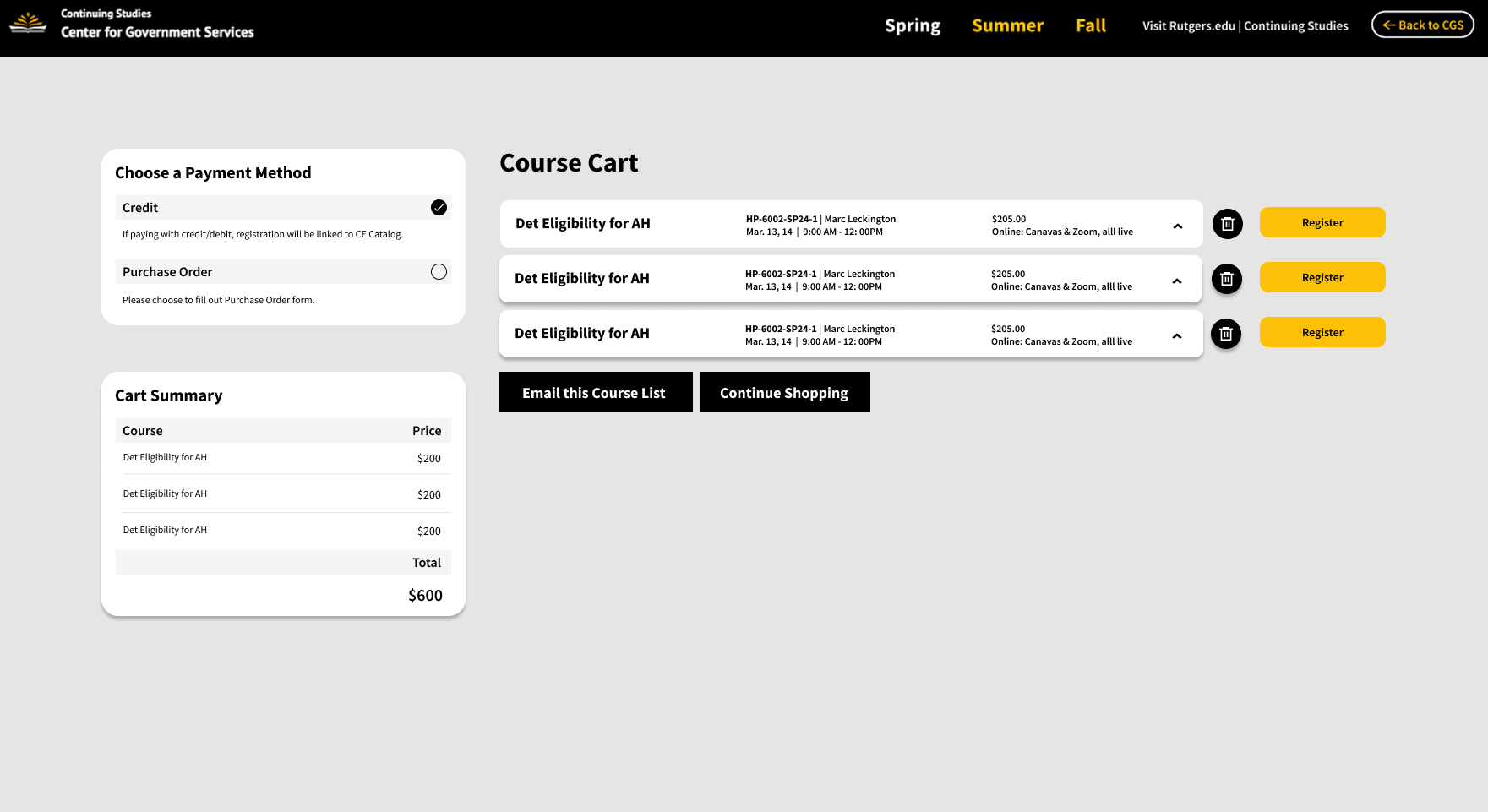

Credit Option UI

Users choosing credit revelas a registration button that externally links to a third party registration page.

Phase 4: Technical Implementation, Launch, and Final Notes

The application was then developed using Next.js, React, and Tailwind CSS. During development, we continued making improvements to the design as new solutions presented.

The Course Hub platform was built using modern web technologies.

Front-end Framework

Next.Js 15 (React 19)
TypeScript
Tailwind CSS v4
SCSS/Sass

Backend & Database

PostgreSQL
Prisma
Next.Js API

Application Features

Dynamic URL based filtering: Provides query params for program areas.
Admin Ovverride: Admins can override course data from database instantly.
Special Notes: Admin controlled messaging systems by department
Status Management: Quickly change course status (Register, Course Full, Closed)
Season-based navigation: Switch course listing by season date.
Department Isolation: Admins unable to access other departments without authorization.
Powerful Filtering System: Browse by concentration, season, instructor, or title/ course #.
Screen Reader Support: Semantic HTML and ARIA labels
Color Contrast: WCAG AA compliant color combinations
Responsive Text: Scales appropriately across devices and zoom levels
Form Labels: Clear, descriptive labels for all input fields
Error Handling: Helpful error messages and validation
